Mute Mortise Lock

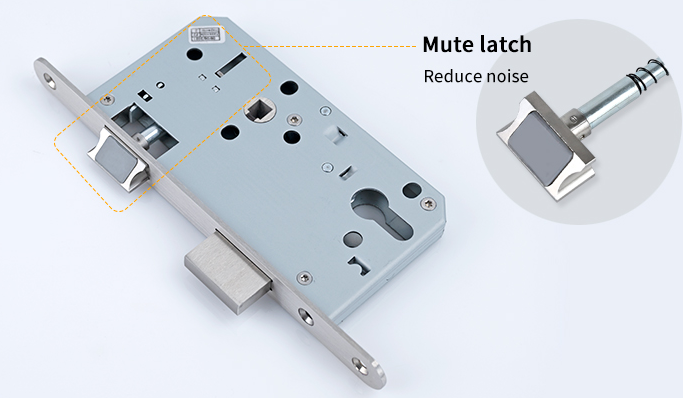

The Mute Mortise Door Lock is our latest innovation, featuring both a latch and a deadbolt. The latch is operated by a lever handle, while the deadbolt can be operated by a key or thumbturn. Constructed with SS304 stainless steel and POM , the latch effectively reduces noise when opening or closing the door. This makes it ideal for environments where noise reduction is crucial, such as hospital wards.
Our European standard mortise locks are designed for high-frequency use and potential misuse applications (Grade 3 category), delivering exceptional performance, safety, and functionality. Carefully crafted from high-quality materials, these mortise locks ensure durability and reliability even in demanding environments. Our locks are suitable for both wooden and steel fire doors, ensuring your fire safety needs.
Features
Noise reduction function

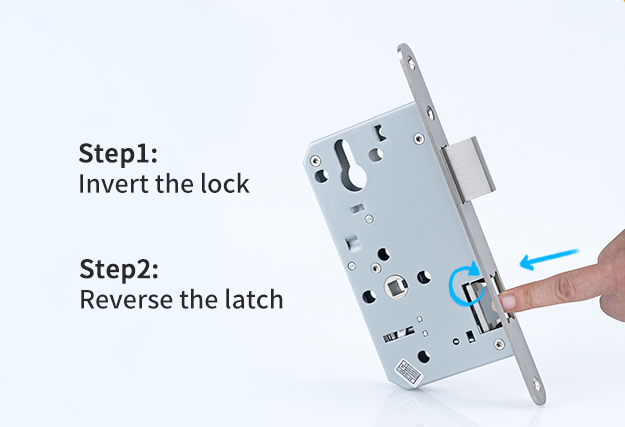

Quick reversible latch without any tools
Suitable for wooden and steel fire doors
Forend and strike plate available in round and square head styles
Compatible with standard lever handles and profile cylinders
High-quality satin stainless steel finish, additional surface finish options available
Quick reversible latch without needing to disassemble the lockcase
Mute Mortise Lock
The Mute Mortise Door Lock is our latest innovation, featuring both a latch and a deadbolt. The latch is operated by a lever handle, while the deadbolt can be operated by a key or thumbturn. Constructed with SS304 stainless steel and POM , the latch effectively reduces noise when opening or closing the door. This makes it ideal for environments where noise reduction is crucial, such as hospital wards.
Our European standard mortise locks are designed for high-frequency use and potential misuse applications (Grade 3 category), delivering exceptional performance, safety, and functionality. Carefully crafted from high-quality materials, these mortise locks ensure durability and reliability even in demanding environments. Our locks are suitable for both wooden and steel fire doors, ensuring your fire safety needs.
Features
Noise reduction function
Quick reversible latch without any tools
Suitable for wooden and steel fire doors
Forend and strike plate available in round and square head styles
Compatible with standard lever handles and profile cylinders
High-quality satin stainless steel finish, additional surface finish options available
Quick reversible latch without needing to disassemble the lockcase
Size | |
Backset | 55/60mm |
Center distance | 72mm |
Major parts | |
Forend | SS304, Height: 235mm, Width: 20/24mm, Thickness: 3mm |
Latch | SS304+POM |
Deadbolt | SS304, 2 throws, Projection: 20mm |
Follower | SS304, Square hole: 8*8mm |
Locking plate | SS304, Thickness: 1.5mm |
Case | SECC, Thickness: 1.5mm |
Standard | |
EN12209, DIN18251 |
