Mortise Lock 72Z

  • 3 X 9 1 0 G 3 B C 2 0

  • 3 X 8 1 0 G 3 H C 2 0

  • 55/60/65/70/80mm

  • 72mm

Availability:

CE Mortise Lock

Our European standard mortise locks are designed for high-frequency use and potential misuse applications (Grade 3 category), delivering exceptional performance, safety, and functionality. Carefully crafted from high-quality materials, these euro profile mortise locks ensure durability and reliability even in demanding environments. Our locks are suitable for both wooden and steel fire doors, ensuring your fire safety needs.

This CE marked mortise sash lock is the most widely used mortise locks in public buildings,such as shopping centers, hospitals, schools, airports. Door handle only operate latch, and profile cylinder operate latch and deadbolt. The latch can be easily reversed to accommodate both left and right-handed doors.


Features

  • CE Certified

  • Tested for 200,000 cycles, low maintenance, extended service life

  • Easy reversible latch

  • Suitable for wooden and steel fire doors

  • Forend and strike plate available in round and square head styles

  • Compatible with standard lever handles and profile cylinders

  • High-quality satin stainless steel finish, additional surface finish options available


CE EN1634-1 logo


Size
Backset

45/50/55/60/65/70/80mm

Center distance
72mm
Major parts

Forend

SS304, Height: 235mm, Width: 20/24mm,

Thickness: 3mm

Latch
SS304
Deadbolt

SS304, 2 throws, Projection: 20mm

Follower

SS304, Square hole: 8*8mm

Locking plate

SS304, Thickness: 1.5mm

Case

SECC, Thickness: 1.5mm

Standard
EN12209, EN1634-1, DIN18251

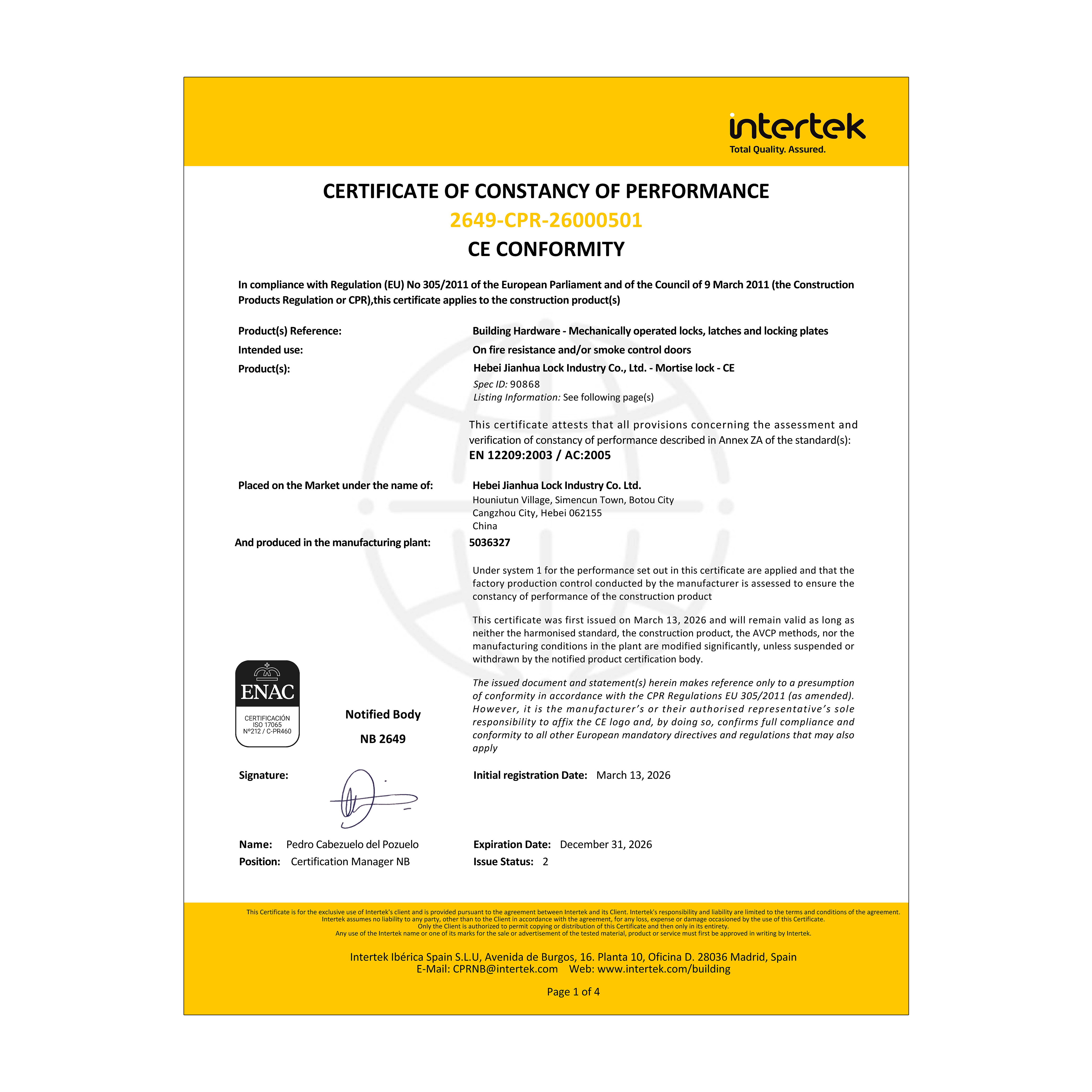

Certification

CE (Intertek)

3 X 9 1 0 G 3 B C 2 0

CE (Warrington)

3 X 8 1 0 G 3 H C 2 0



Fire test (EN1634-1)

Steel fire door: 240mins

Timber fire door: 90mins

(Intertek)

Steel fire door: 240mins

Timber fire door: 30/60/90/120mins

(Warrington)
