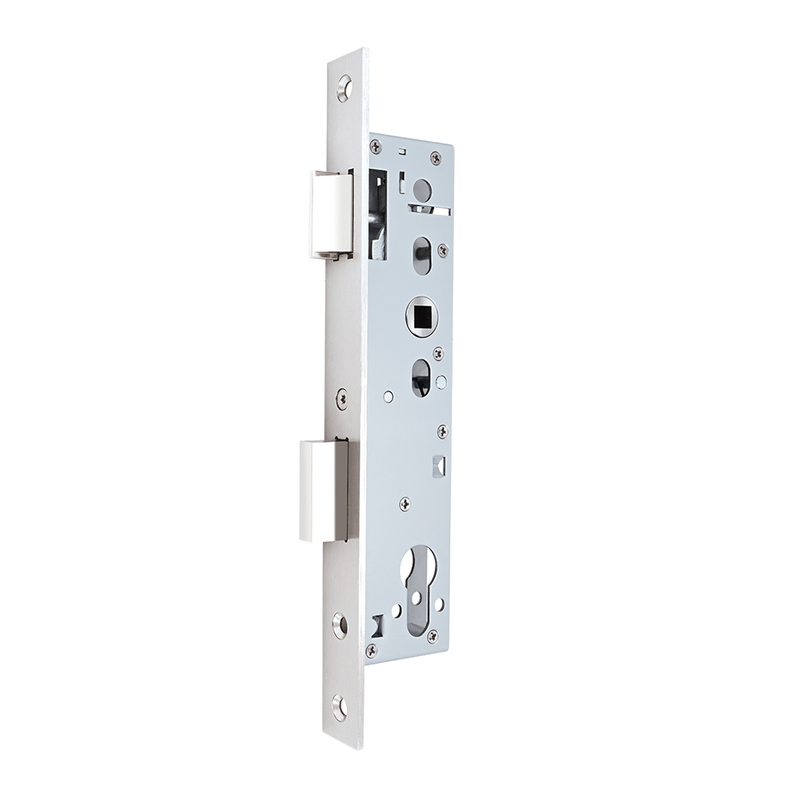

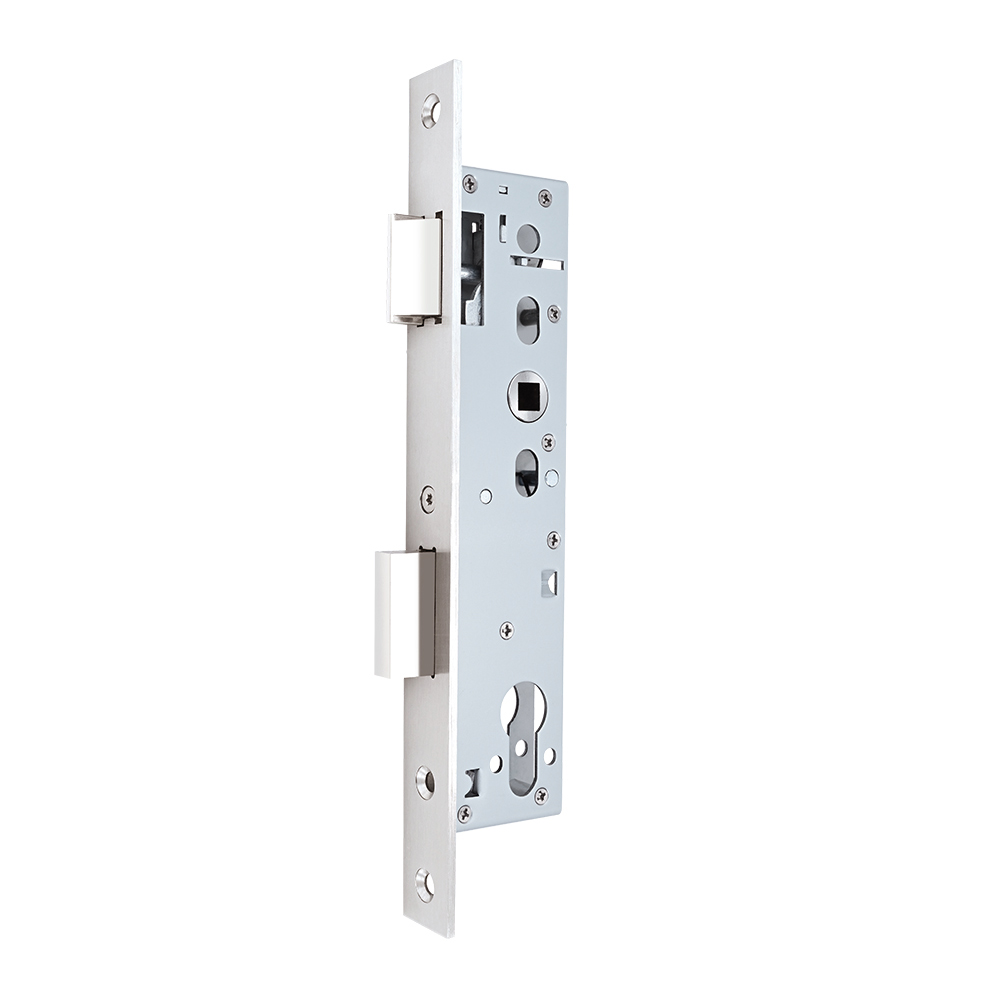

Mortise Frame Lock 92Z

  • 30/35mm

  • 92mm

Availability:

Mortise Frame Lock

Our European standard mortise locks are designed for high-frequency use and potential misuse applications (Grade 3 category), delivering exceptional performance, safety, and functionality. Carefully crafted from high-quality materials, these euro profile mortise locks ensure durability and reliability even in demanding environments. Our locks are suitable for both wooden and steel fire doors, ensuring your fire safety needs.

This narrow mortise lock is also designed for commercial applications such as offices and retail shops. It offers a compact design with a backset of 30/35mm and a center distance of 92mm, making it ideal for narrow door profiles.


Features

  • Low maintenance, extended service life

  • Forend and strike plate available in round and square head styles

  • Compatible with lever handles and profile cylinders


Size
Backset

30/35mm

Center distance
92mm
Major parts

Forend

SS304, Height: 245mm, Width: 16-30mm,

Thickness: 3mm

Latch

Zamak 5

Deadbolt

Zamak 5, 1 throw, Projection: 15mm

Follower

SS304, Square hole: 8*8mm

Locking plate

SS304, Thickness: 1.5mm

Case

SECC, Thickness: 1.5mm

Standard
EN12209, DIN18251
