Mortise Door Lock 85Z

  • 3 X 9 1 0 G 3 B C 2 0

  • 45/50/55/60mm

  • 85mm

Availability:

Stainless Steel 85mm Center Distance Mortise Door Lock

For the mortise locks ,we mainly have 2 styles, German style and Italy/Spain syle , this 85mm center distance mortise lock is the Italy/Spain style door lock, the backset we can do are 45/50/55/60mm. Round corner or square corner is avaiable for your choice. Our mortise locks are suitable for used on smoke control and fire proof doors in public buildings.


Features

  • CE Certified

  • Tested for 200,000 cycles, low maintenance, extended service life

  • Easy reversible latch

  • Suitable for wooden and steel fire doors

  • Forend and strike plate available in round and square head styles

  • Compatible with standard lever handles

  • High-quality satin stainless steel finish, additional surface finish options available

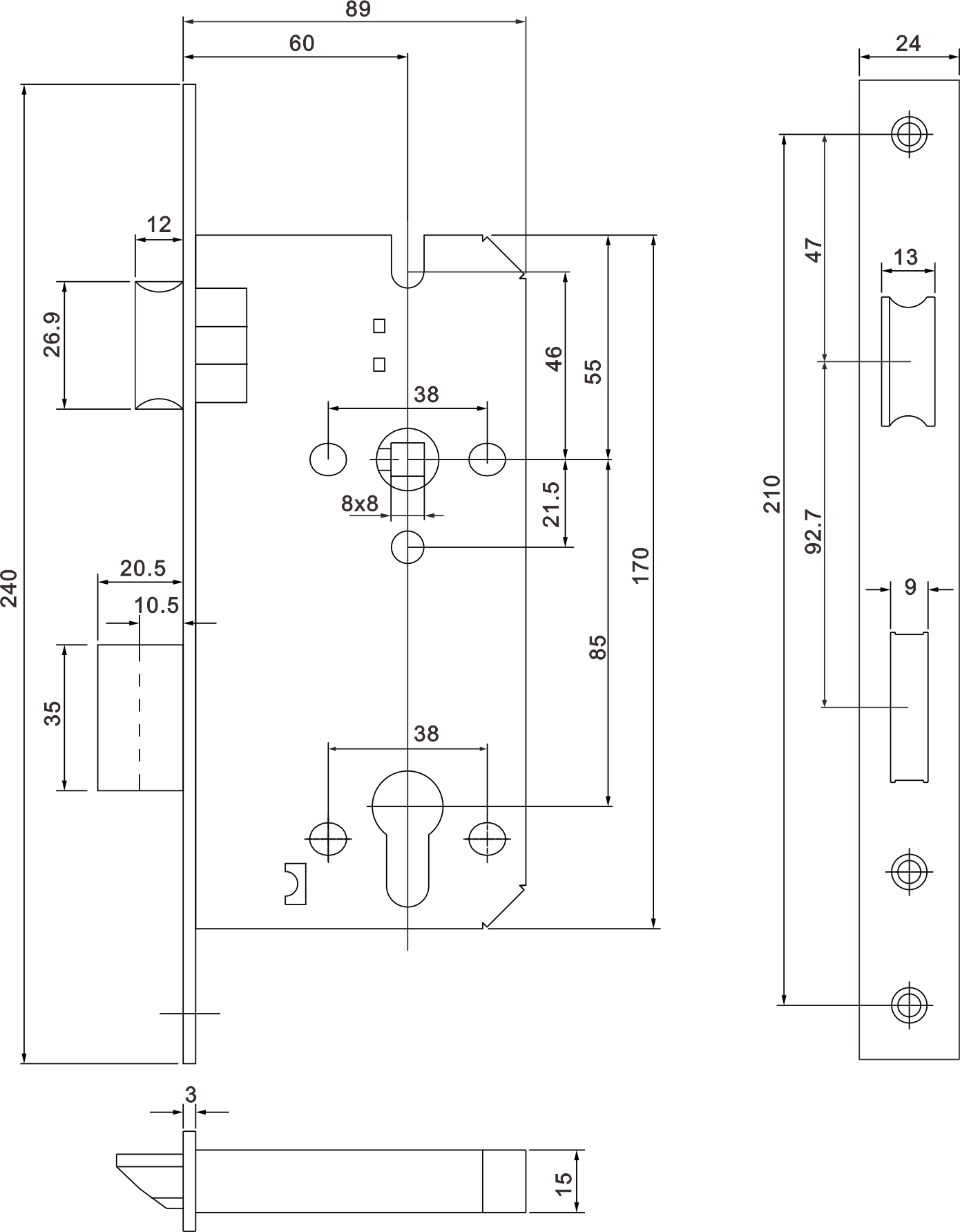

Mortise door lock 6085Z details


Size
Backset

45/50/55/60mm

Center distance
85mm

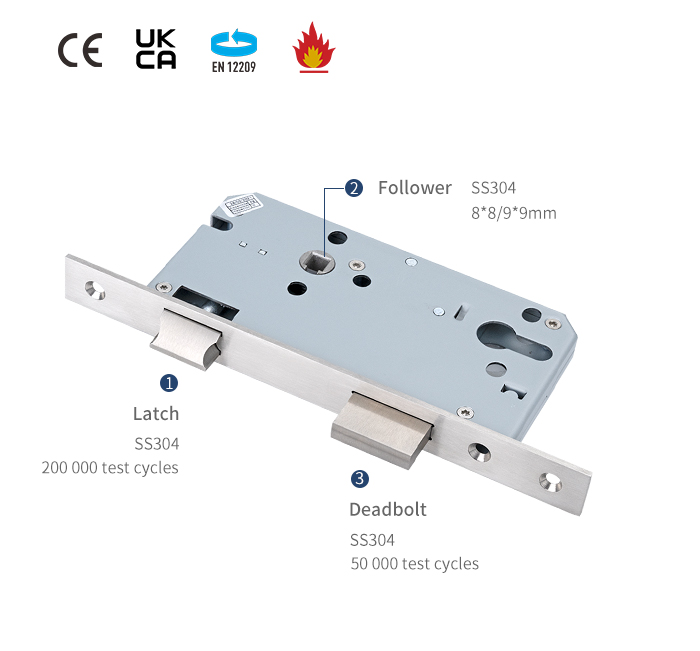

Major parts

Forend

SS304, Height: 240mm, Width: 24mm,

Thickness: 3mm

Latch
SS304
DeadboltSS304, 2 throws, Projection:20mm
Follower

SS304, Square hole: 8*8mm

Locking plate

SS304, Thickness: 1.5mm

Case

SECC, Thickness: 1.5mm

Standard
EN12209, EN1634-1, DIN18251
Certification

CE (Intertek)

3 X 9 1 0 G 3 B C 2 0


Fire test (EN1634-1)

Steel fire door: 240mins

Timber fire door: 90mins

(Intertek)
