72mm
65mm

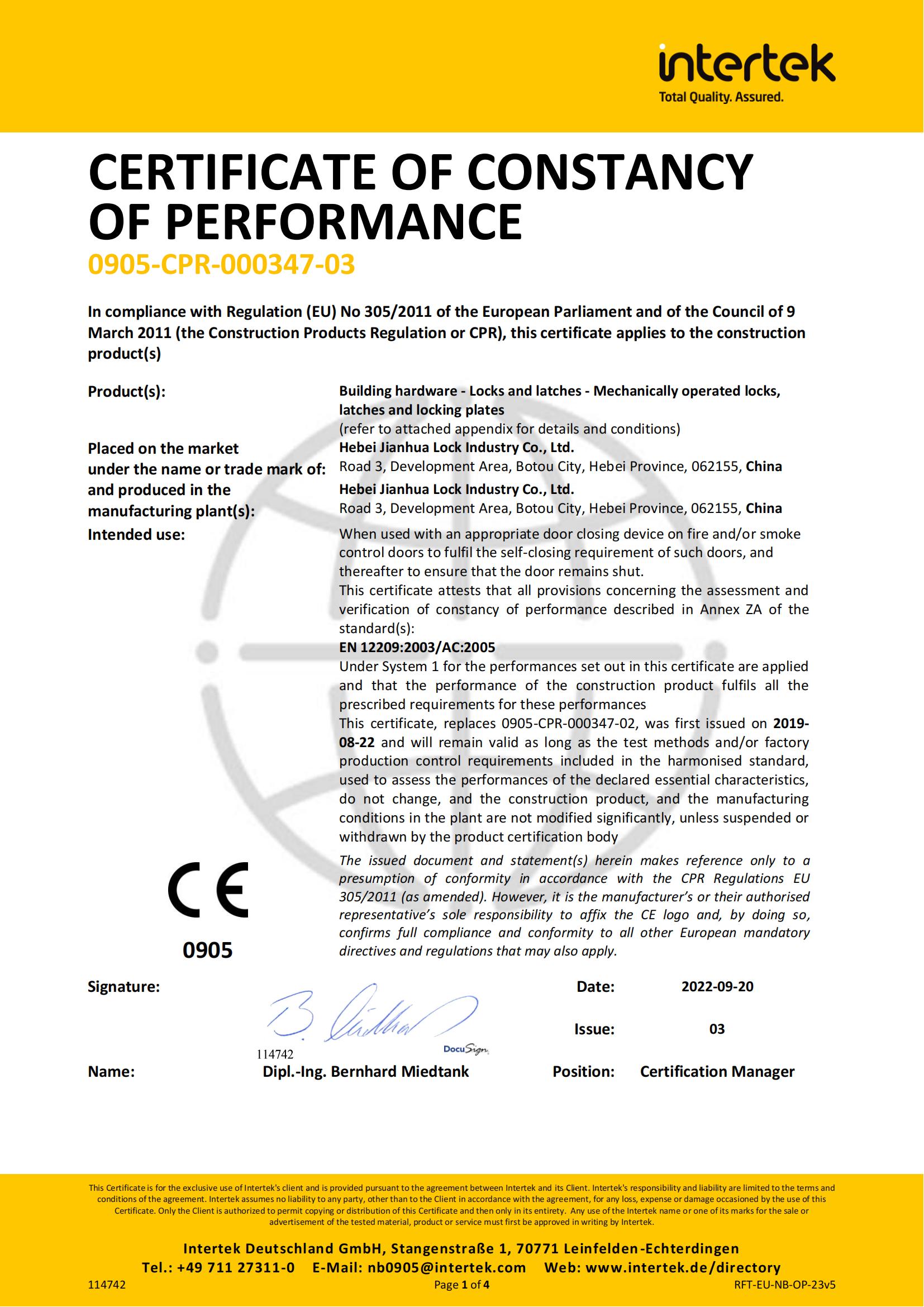

CE / UKCA (3 X 9 1 0 G 3 B C 2 0)
240mins(Steel door) ; 90mins(Timber door)
| Quantity: | |
|---|---|
Model | 6572Z |
Latch | SS304 |
Deadbolt | SS304; 2 throws |
Follower | SS304; size: 8*8mm |
Forend | SS304; Thickness: 3mm |
Compliance with | CE UKCA EN12209/DIN18251/EN1634-1 |
Fire resistance | 240mins (Steel door); 90mins (Timber door) |
Our mechanical mortise locks are designed specifically for timber or steel doors– with different backset, such as 50mm, 55mm, 60mm, 65mm, 70mm, 80mm and forend with rounded end or square end. This euro mortise door lock passed CE / UKCA certification according to EN12209 standard , also passed fire resistance test according to EN1634-1 . It is made from high quality stainless steel 304 , the feature is corrosion resistance stronger and fire rated . Our mortise lock is widely used in public buildings.
Grade 3, according to European standard EN12209/DIN18251
Reversible latch suitable for DIN left and DIN right doors
6572Z-72mm center distance ,65mm backset
Fire rated 240mins on steel door ; 90mins on timber door
Passed 200,000 test cycles (Latch) ; 50000 test cycles (Deadbolt)
Corrosion resistance 240 hours
Double Throw (2 Turns) deadbolt
Stainless steel 304 material
