Escape Mortise Lock 72ZE

  • 3 7 6 B 1 4 5 2 A B/D

  • 240mins(Steel door)

  • 72mm

  • 60mm

Availability:

Escape Mortise Lock

Our European standard mortise locks are designed for high-frequency use and potential misuse applications (Grade 3 category), delivering exceptional performance, safety, and functionality. Carefully crafted from high-quality materials, these mortise locks ensure durability and reliability even in demanding environments. Our locks are suitable for both wooden and steel fire doors, ensuring your fire safety needs.

This escape mortise lock, as the name suggests, enables rapid escape and complies with the EN179 standard. Once the lock is engaged, pressing the handle from inside the room simultaneously controls both the latch and the deadbolt, saving precious escape time. We all know that in the event of a fire, flames can spread rapidly in an instant. This euro profile escape mortice lock can effectively facilitate quick evacuation. It is typically installed on emergency exit doors.


Features

  • CE Certified

  • Tested for 200,000 cycles, low maintenance, extended service life

  • Quick evacuation function

  • Suitable for steel fire doors

  • Forend and strike plate available in round and square head styles

  • Compatible with lever handles and profile cylinders

  • High-quality satin stainless steel finish, additional surface finish options available


Escape Mortise Lock Function


From the inside :

  • When the door is locked, latch and deadbolt can be retracted at the same time by manipulating the handle.

  • Locking the door can be achieved using either the cylinder key or thumbturn.


From the outside :

  • If the door is unlocked, the latch can be retracted by operating the handle.

  • In case of a locked door, the deadbolt can be opened using the cylinder key or thumbturn.


CE EN1634-1 logo


Size
Backset

60mm

Center distance
72mm
Major parts

Forend

SS304, Height: 235mm, Width: 20/24mm,

Thickness: 3mm

Latch
SS304
Deadbolt

SS304, 2 throws, Projection: 20mm

Follower

SS304, Square hole: 8*8mm

Locking plate

SS304, Thickness: 1.5mm

Case

SECC, Thickness: 1.5mm

Standard
EN12209, EN179, EN1634-1, DIN18251

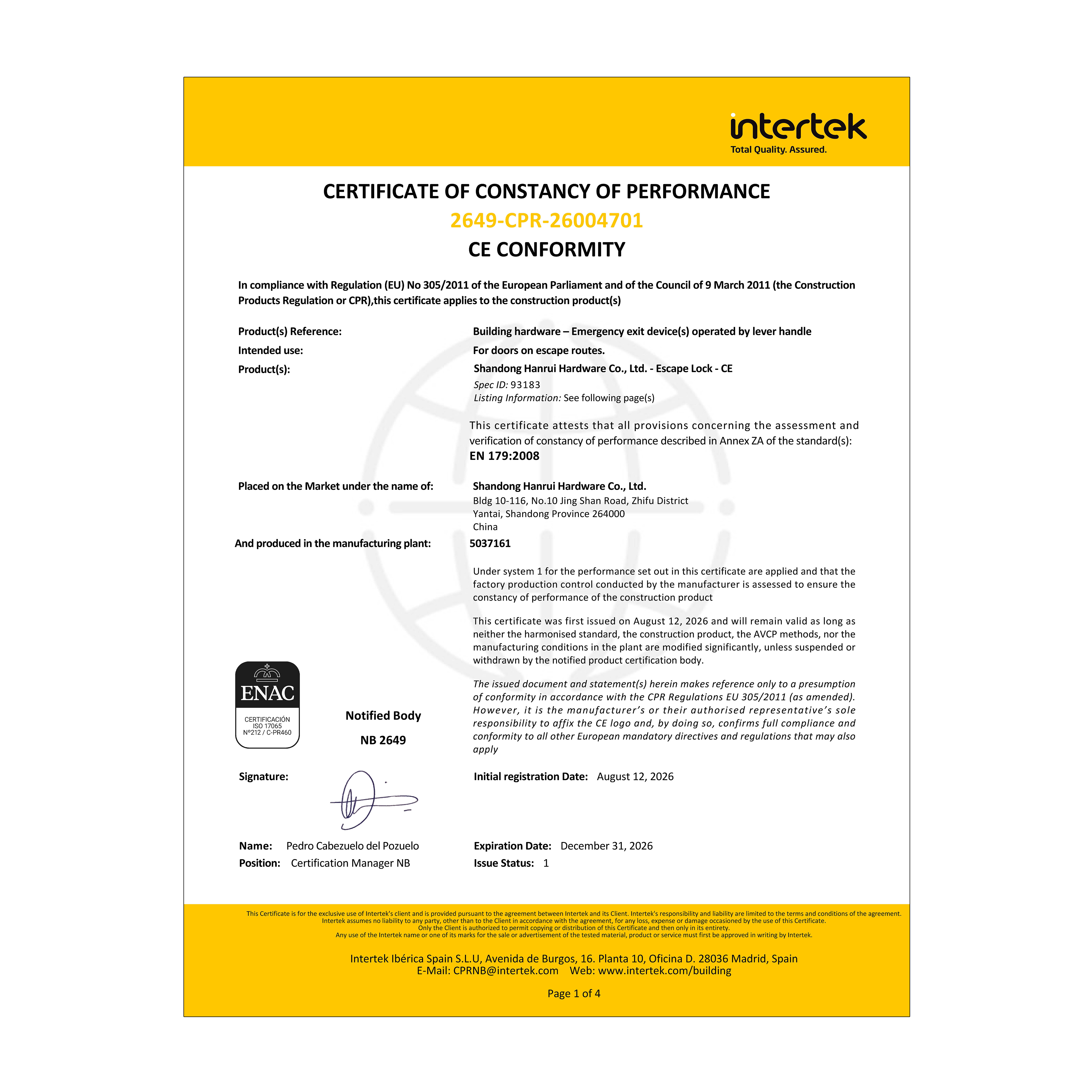

Certification

CE (Intertek)

3 7 6 B 1 4 5 2 A B/D

Fire test (EN1634-1)

Steel fire door: 240mins
